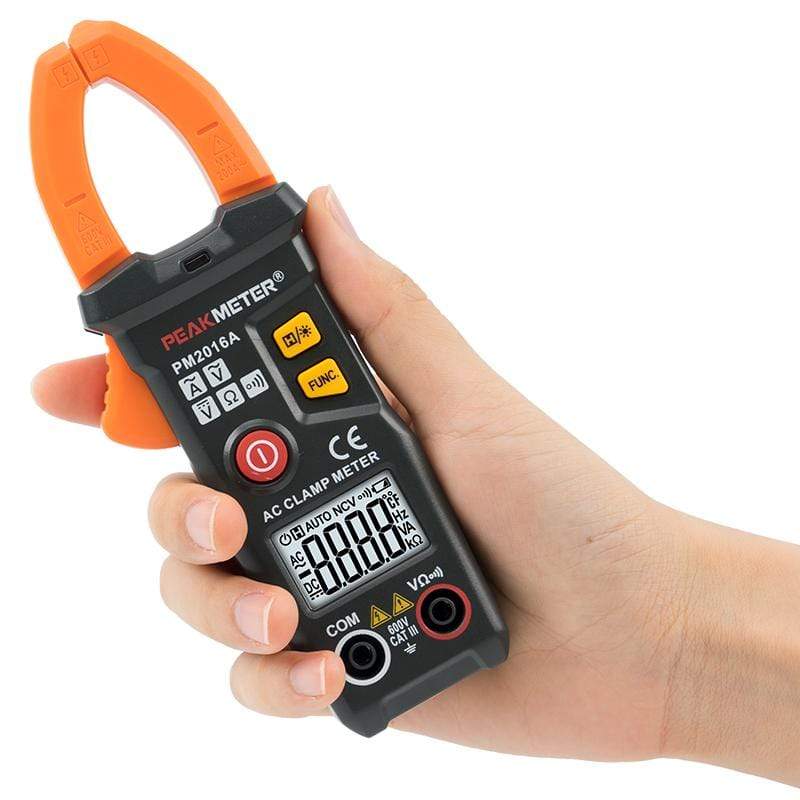

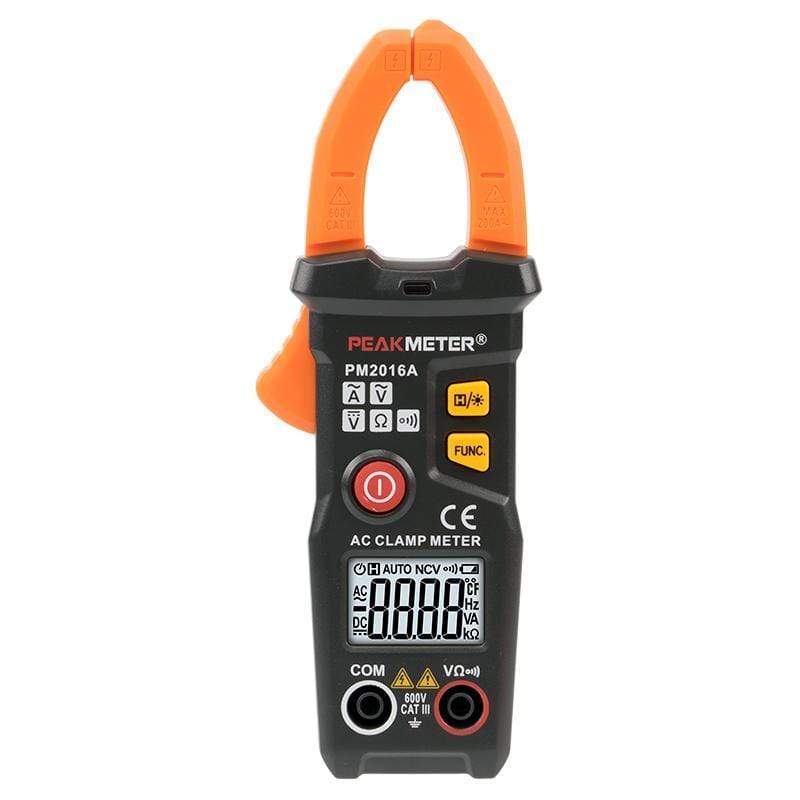

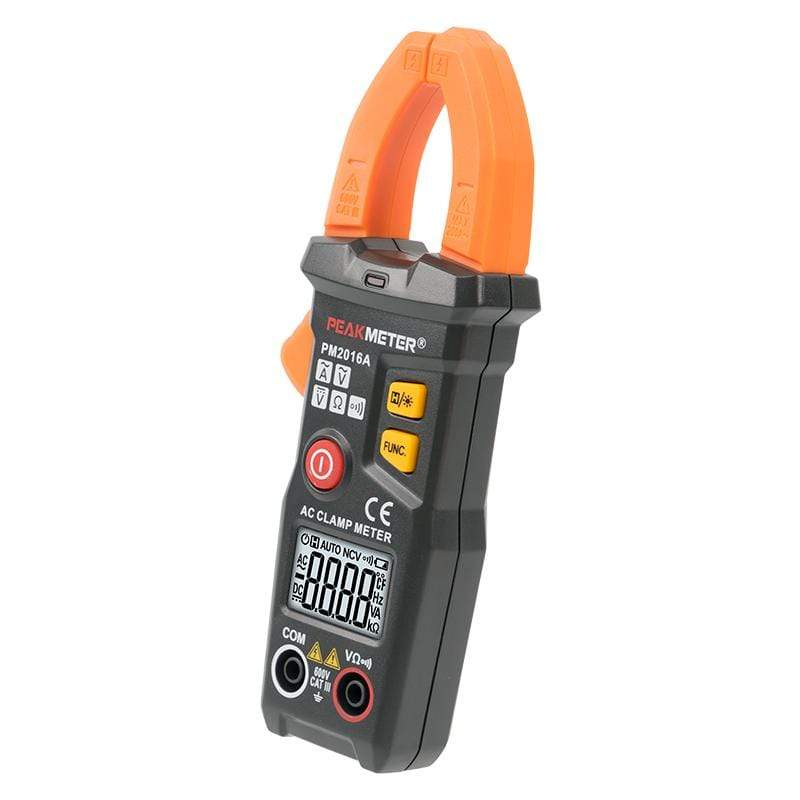

This DCM multimeter is a clamp meter to measure AC / DC Voltage, frequency, and resistance. The PM2016A Amp Clamp has a Digital LCD, 6000 counts display with backlight. Suitable for electrical equipment testing and maintenance. Jaw size is 20mm.
Specifications:
DC Voltage measurement: 0 - 600V +/- ( 0.5% + 3 )
AC Voltage measurement: 1 - 600V +/- ( 0.8%+ 5 )
AC Current measurement: 10mA - 200A +/- ( 2.5%+ 5 )
Resistance measurement: 0 - 6 kΩ +/- ( 0.8% + 3 )
Safety rating: EN61010-1,-2-030, EN61010-2-032, EN61326-1,CAT.III 600V
Features:
- Small size, portable handheld style
- Stable performance, high precision, and low power consumption, safe and reliable
- Data hold function, automatic intelligent measurement and auto power off
- Powered by 2 x 1.5V AAA batteries ( not included )
Model Name: PM2016A
